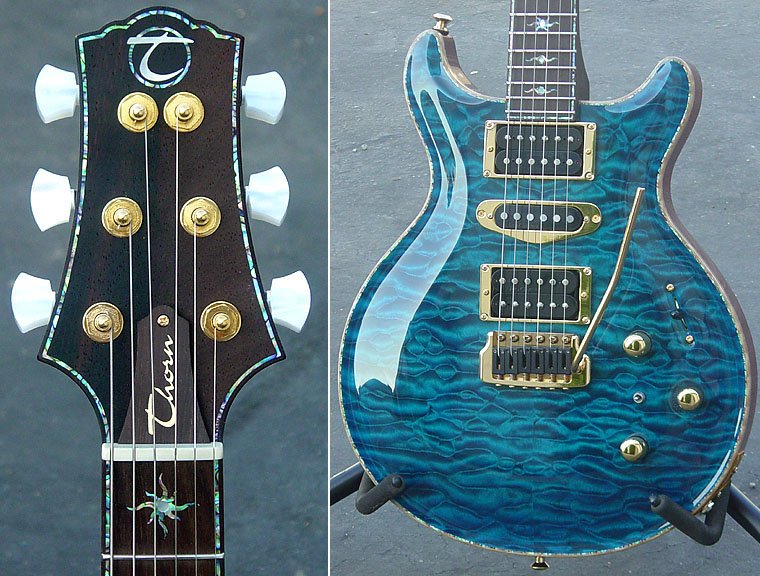

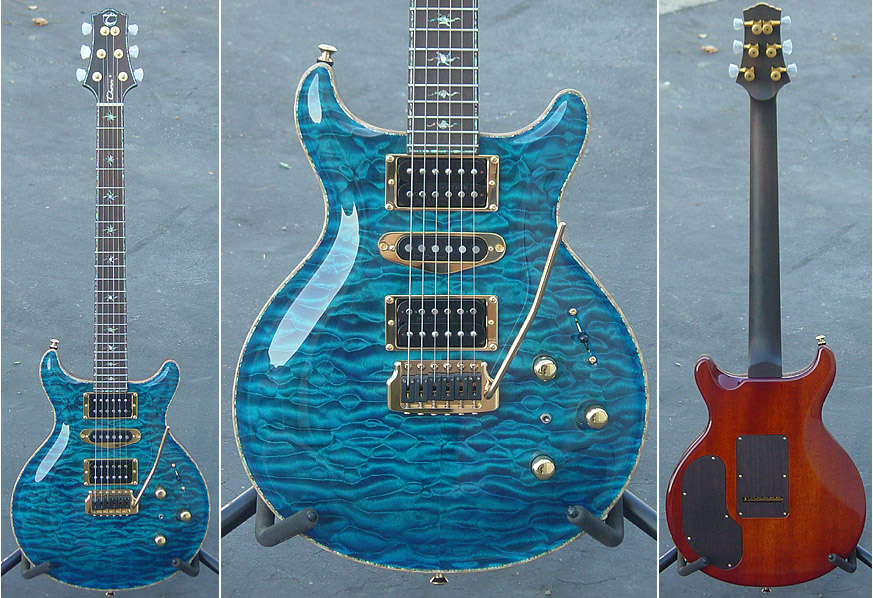

Artisan Deluxe  # 049

Top - 5A Quilt Maple
Body Back - Honduran Mahogany
Neck - Brazilian Rosewood
Fingerboard - Brazilian Rosewood  / 10-14" Compound Radius / 25" Scale / 22 Fret
Nut - Tusq ~ 1-11/16" wide
Fretwire - 6105
Neck Carve - PRS Wide/Thin equiv.
Matching Inlaid Truss Rod Cover

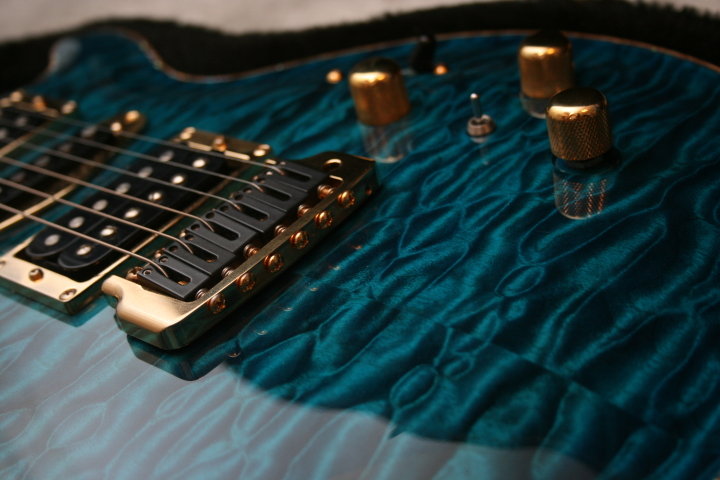

Bridge -  One-piece Tremolo
Gold Hardware
Tuners - Sperzel Locking w/ Pearl Buttons
Dunlop Straploks
Fingerboard Inlays - Firesuns Pearl + Paua
Purfling - Paua Body Top & Sides / Fingerboard / Headstock
Inlaid Logo - Paua / Pearl
Side Dots - Mother of Pearl
   Neck Pickup - Wagner Fillmore
   Middle Pickup - Rio Grande Halfbreed
   Bridge Pickup - Wagner Fillmore

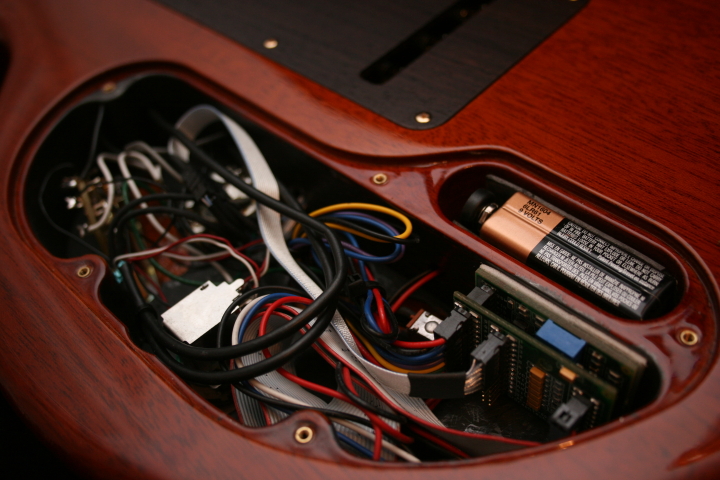

GraphTech Ghost Piezo System
Controls - Vol. x 1, Tone x 1, Piezo Volume
5-way Blade/Super Switch ~ Custom wiring
   Top Stain -  Ocean Blue
   Body Back - Natural w/ black grain filler



Thorn # 049 was designed to compliment my PRS Custom 24.  I had Ron build the neck to match my CU24 so that it would be easy to swap between the two guitars without having to adjust to differences in necks.  I did change the fret wire on the Thorn to 6105 which is a taller fret than PRS uses.  In addition to the H-S-H pickup configuration, I had Ron install a GraphTech Ghost piezo system in the guitar too.  Not only does the Ghost system mimic an acoustic guitar sound, but it also has a 13-pin hexpander output for using with guitar synthesizers.   It is really wild being able to play keyboard sounds with my guitar.  It is pretty awesome what you can do with one instrument that can produce your typical guitar sounds plus an acoustic sound and a synth sound all at the same time.  I've never seen another guitar with this much versatility!  Top it all off with a Brazilian rosewood neck and #049 turned out to be one awesome guitar.
Mick Youmans

Click here if you would like to see construction photos of this guitar.
